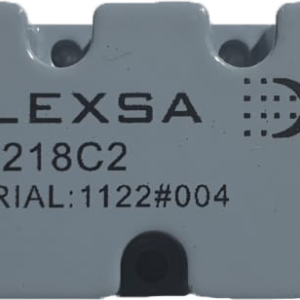

An ultra-broadband SMA high pass filter designed for input signals from DC to 18 GHz, with a passband from 2 to 18 GHz. It features low passband insertion loss of less than 1.0 dB from 2.2 to 18 GHz, with mid-band insertion loss as low as 0.2 dB, and return loss greater than 9.54 dB (VSWR 2:1) across the passband. The filter provides high out-of-band rejection, exceeding 50 dB from DC to 1.7 GHz, with measured rejection levels greater than 80 dB from DC to 1.5 GHz.

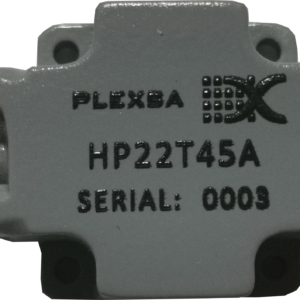

An ultra-broadband high pass filter designed for input signals from DC to 45 GHz, with a passband from 22 to 45 GHz. It features low passband insertion loss of less than 1.5 dB, with typical in-band insertion loss around 0.5 dB, and return loss greater than 10 dB, (with real-world performance consistently exceeding 12 dB). The filter provides excellent out-of-band rejection, exceeding 60 dB from DC to 20 GHz with measured rejection levels typically more than 70 dB from DC to 19 GHz. It comes with one 2.92 mm male and one 2.92 mm female connector.

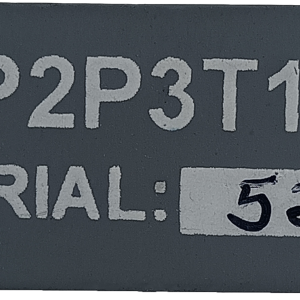

An ultra-broadband high pass filter designed for input signals from DC to 18 GHz, providing a passband from 2.3 to 18 GHz. It features low passband insertion loss of less than 1.3 dB, with mid-band insertion loss as low as 0.3 dB, and return loss greater than 10 dB. The filter provides excellent out-of-band rejection, exceeding 60 dB from DC to 2.1 GHz, with measured rejection levels of more than 70 dB from DC to 1.8 GHz. It comes with one SMA male and one SMA female connector.

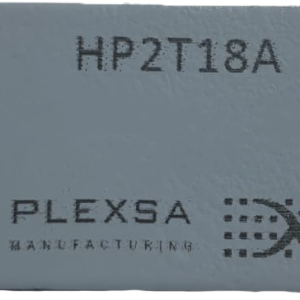

An ultra-broadband high pass filter designed for input signals from DC to 18 GHz, with a passband from 2 to 18 GHz. It features low passband insertion loss of less than 1.5 dB, with mid-band insertion loss typically 0.5 dB, and return loss greater than 10 dB. The filter provides excellent out-of-band rejection, exceeding 60 dB from DC to 1.6 GHz, and comes with one SMA male and one SMA female connector.

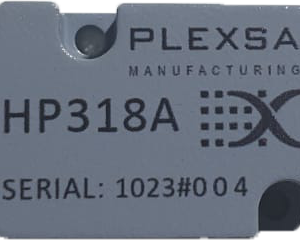

An ultra-broadband SMA high pass filter designed for input signals from DC to 18 GHz, with a passband from 3 to 18 GHz. It features low passband insertion loss of 1.0 dB or less and return loss greater than 9.54 dB (VSWR 2:1). The filter provides high out-of-band rejection, exceeding 50 dB from DC to 2.5 GHz, with measured rejection levels over 70 dB from DC to 2 GHz.

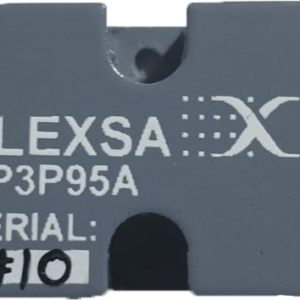

An ultra-broadband SMA high pass filter designed for input signals from DC to 18 GHz, with a passband from 3.95 to 18 GHz. It features very low passband insertion loss of less than 0.7 dB, with mid-band insertion loss as low as 0.2 dB, and return loss greater than 9.54 dB (2:1 VSWR). The filter provides excellent out-of-band rejection, exceeding 60 dB from DC to 2.95 GHz.

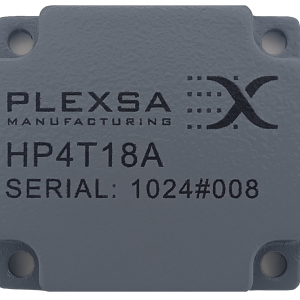

An ultra-broadband SMA high pass filter designed for input signals from DC to 18 GHz, with a passband from 4 to 18 GHz. It features very low passband insertion loss of less than 1.0 dB, with mid-band insertion loss as low as 0.2 dB, and return loss greater than 12 dB. The filter provides high out-of-band rejection, exceeding 55 dB from DC to 3.3 GHz, and is presented in a low profile housing that is only 7.5 mm thick.

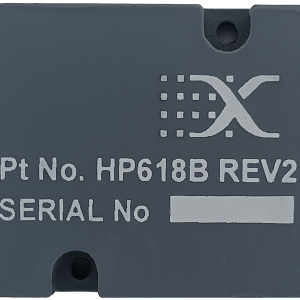

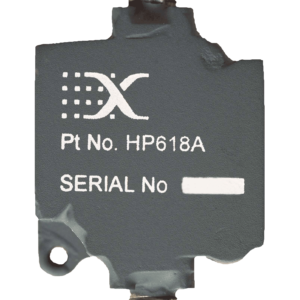

An ultra-broadband SMA high pass filter designed for input signals from DC to 18 GHz, with a passband from 6 to 18 GHz. It features low passband insertion loss of 1.0 dB or less and return loss greater than 9.54 dB (VSWR 2:1). The filter provides excellent out-of-band rejection, exceeding 60 dB from DC to 5.3 GHz.
An ultra-broadband SMP high pass filter designed for input signals from DC to 18 GHz, with a passband from 6 to 18 GHz. It features low passband insertion loss of 1.0 dB or less and return loss greater than 9.54 dB (VSWR 2:1). The filter provides excellent out-of-band rejection, exceeding 60 dB from DC to 5.3 GHz.

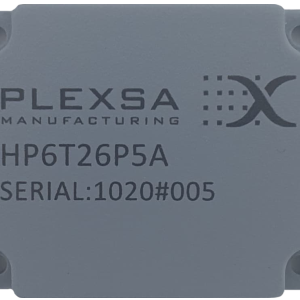

An ultra-broadband SMA high pass filter designed for input signals from DC to 26.5 GHz, with a passband from 6 to 26.5 GHz. It features very low passband insertion loss of less than 1.0 dB from 6.1 to 26.5 GHz, with mid-band insertion loss as low as 0.2 dB, and very high return loss of greater than 17 dB. The filter provides high out-of-band rejection, exceeding 60 dB from DC to 5.4 GHz.
