SMA diplexer which processes a DC to 10 GHz input into 2 contiguous passbands with a 3.5 GHz crossover, an additional high pass at 2 GHz, and low pass at 6 GHz. It provides low passband insertion loss of less than 1.35 dB, very high return loss of more than 14 dB, and high stopband rejection of more than 55 dB.
Ultra-broadband SMA diplexer which processes a DC to 18 GHz input into 2 contiguous passbands with a 3 GHz crossover. It provides low passband insertion loss of less than 1.2 dB, good return loss of more than 9.54 dB (VSWR 2:1), and exceptional stopband rejection of more than 80 dB.

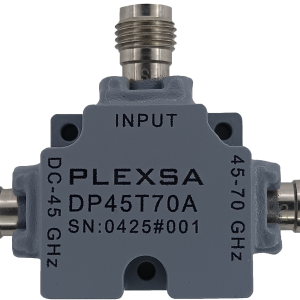

Broadband 1.85 mm diplexer that processes a DC to 70 GHz input into 2 contiguous passbands with a crossover at 45 GHz. It offers very low passband insertion loss of less than 1.0 dB, good return loss of at least 9.5 dB, and high stopband rejection of at least 50 dB.

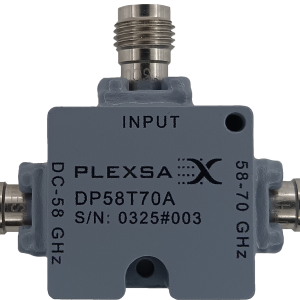

Broadband 1.85 mm diplexer that processes a DC to 70 GHz input into 2 contiguous passbands with a crossover at 58 GHz. It offers low passband insertion loss of less than 1.5 dB, good return loss of at least 9.5 dB, and high stopband rejection of at least 50 dB.

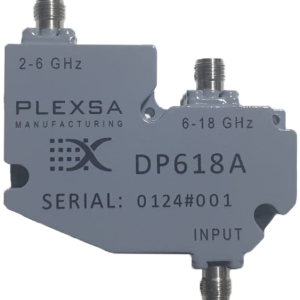

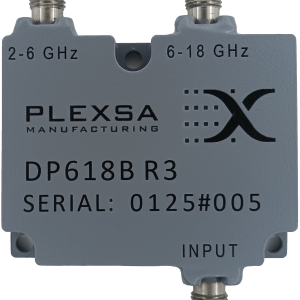

Broadband SMA diplexer which processes a DC to 18 GHz input into 2 contiguous passbands with a 6 GHz crossover, and an additional high pass at 2 GHz. It provides low passband insertion loss of less than 1.5 dB, good return loss of more than 12 dB, and excellent stopband rejection of more than 65 dB.
Broadband SMA diplexer which processes a DC to 36 GHz input into 2 contiguous passbands with a 6 GHz crossover, an additional high pass at 2 GHz and low pass at 18 GHz. It provides low passband insertion loss of less than 1.5 dB, good return loss of more than 13 dB, and excellent stopband rejection of typically more than 65 dB.
Broadband SMA diplexer which processes a DC to 22 GHz input into 2 contiguous passbands with a 6 GHz crossover, an additional high pass at 2 GHz and low pass at 18 GHz. It provides very low passband insertion loss of less than 1.0 dB, good return loss of more than 12 dB, and very high stopband rejection of more than 55 dB.

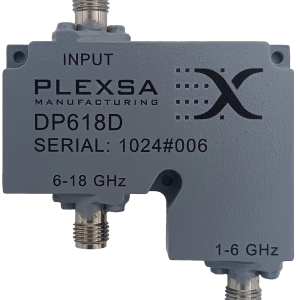

Ultra-broadband SMA diplexer which processes a DC to 18 GHz input into 2 contiguous passbands with a 6 GHz crossover, and an additional high pass at 1 GHz. It provides low passband insertion loss of less than 1.5 dB, good return loss of more than 10 dB, and very high stopband rejection of more than 60 dB, in thin housing only 7.5 mm thick.

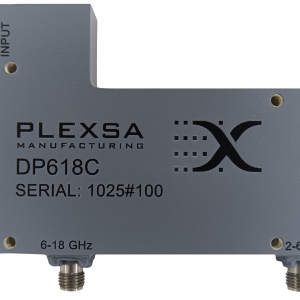

Ultra-broadband SMA diplexer which processes a DC to 18 GHz input into 2 contiguous passbands with a 6 GHz crossover, and an additional high pass at 500 MHz. It provides passband insertion loss of less than 2.0 dB, good return loss of more than 10 dB, and high stopband rejection of more than 55 dB, in thin housing only 7.5 mm thick.

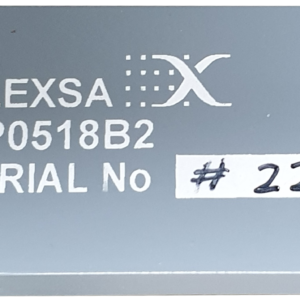

Ultra-broadband SMA high pass filter designed for input signals from DC to 18 GHz, providing a passband from 0.5 to 18 GHz. It offers low passband insertion loss of typically less than 1.5 dB, and return loss typically greater than 10 dB across the passband. The filter also delivers very high out-of-band rejection of more than 60 dB from DC to 350 MHz, and is presented in a low profile housing that is only 7.5 mm thick.

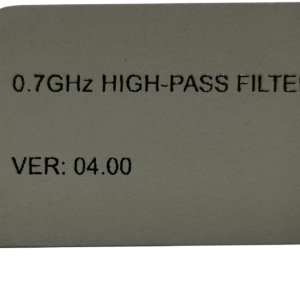

Ultra-broadband SMP high pass filter designed for input signals from DC to 18 GHz, with a passband from 0.7 to 18 GHz. It features low passband insertion loss of less than 1.6 dB from 0.8 to 18 GHz and return loss greater than 9 dB from 0.87 to 18 GHz. The filter provides very high out-of-band rejection, exceeding 60 dB from DC to 500 MHz, and is presented in a low profile housing that is only 7.5 mm thick.

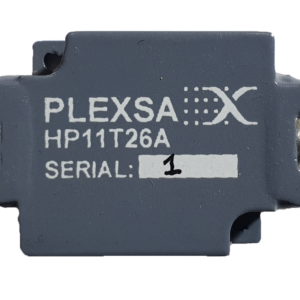

Broadband SMA high pass filter designed for input signals from DC to 26 GHz, with a passband from 11 to 26 GHz. It features low passband insertion loss of less than 1.5 dB, with typical in-band insertion loss around 0.5 dB, and return loss greater than 12 dB. The filter provides high out-of-band rejection, exceeding 55 dB from DC to 9.5 GHz.
