Diplexer

Broadband RF diplexers, implemented with suspended substrate stripline technology.

Our contiguous diplexers can be used to split a broadband input into two adjacent frequency bands OR combine two bands into a single output.

Our products have low insertion loss and VSWR, and high selectivity: all in compact sizing. We welcome custom design requests, from DC to 70 GHz.
broadband rf diplexer filter

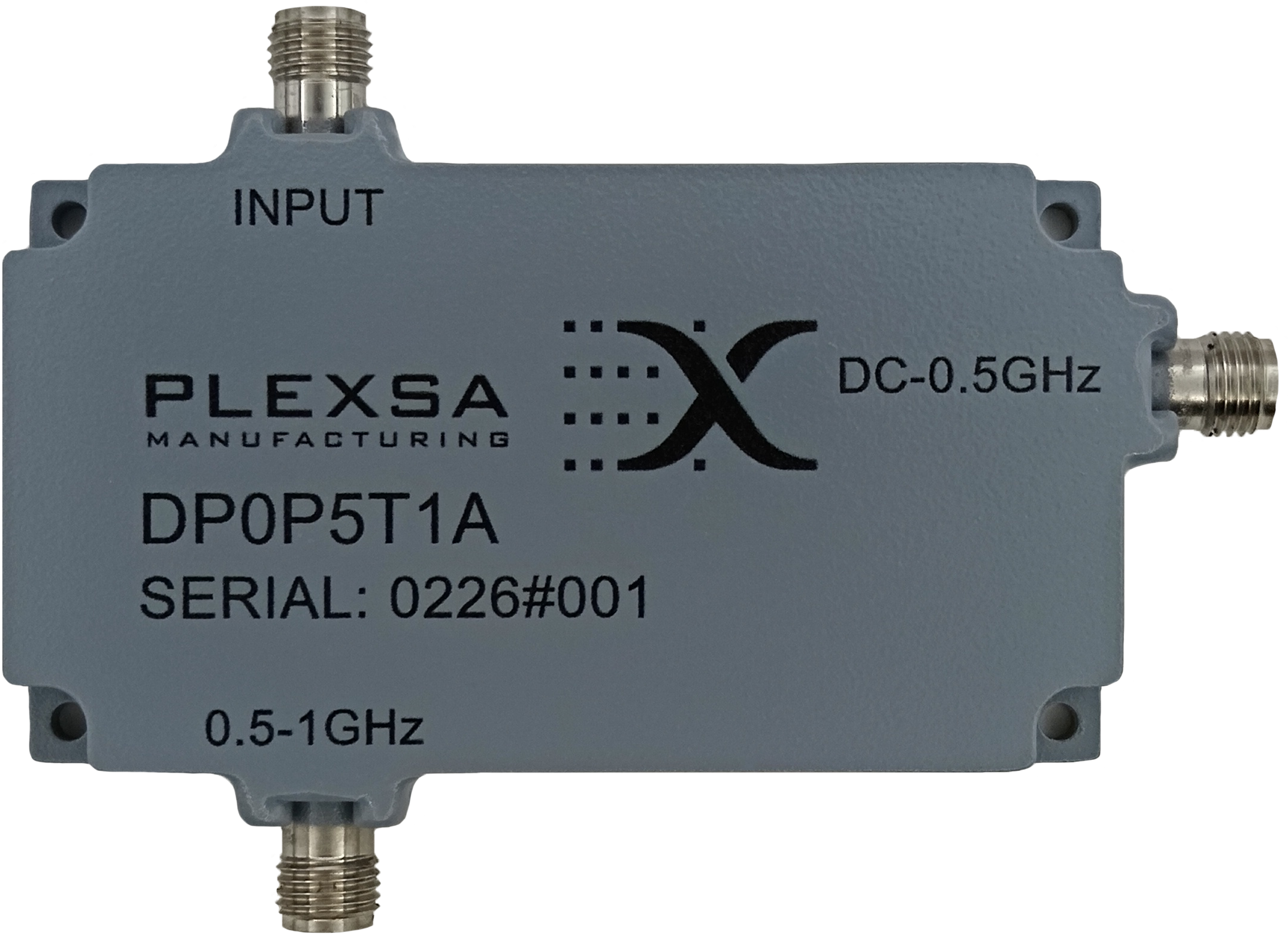

DP0P5T1A

Passbands:
DC - 0.5 - 1 GHz

broadband rf diplexer filter

DP1T18A

Passbands:
DC – 1 – 18 GHz

broadband rf diplexer filter

DP2T8T18A

Passbands:
2 - 8 - 18 GHz

broadband rf diplexer filter

DP2T18A

Passbands:
0.7 - 2 - 18 GHz

DP2T18A3P5M

Passbands:
DC - 2 - 18 GHz

broadband rf diplexer filter

DP3T18A

Passbands:
DC – 3 – 18 GHz

broadband rf diplexer filter

DP05T2T18A

Passbands:
0.5 – 2 – 18 GHz

broadband rf diplexer product channels 1 to 12 to 24 GHz passband insertion loss less than 1 dB plexsa

DP12T24A

Passbands:
DC – 24.5 GHz

Broadband RF Diplexer Product channels 18 to 25.5 to 40 GHz input DC to 40 GHz plexsa

DP18T25P5A

Passbands:
18 – 25.5 – 40 GHz

broadband rf diplexer filter

DP18T26P5A

Passbands:
18 - 26.5 - 40 GHz

DP22A

Passbands:
DC – 22 – 40 GHz

DP22P5A

Passbands:
DC – 22.5 – 40 GHz

Broadband RF Diplexer Product channels 18 to 33 to 40 GHz input DC to 40 GHz plexsa

DP33C2

Passbands:
18 – 33 – 40 GHz

broadband rf diplexer filter

DP45T70A

Passbands:
DC – 45 – 70 GHz

DP58T70A

Passbands:
DC – 58 – 70 GHz

DP618A

Passbands:
2 – 6 – 18 GHz

broadband rf diplexer filter

DP618B

Passbands:
2 – 6 – 18 GHz

Broadband RF Diplexer Product channels 1 to 6 to 18 GHz plexsa

DP618D

Passbands:
1 – 6 – 18 GHz

DP1840HPA

Passbands:
DC – 18 – 40 GHz

Broadband RF Diplexer Product channels 0.7 to 18 to 40 GHz plexsa

DP07040

Passbands:
0.7 – 18 – 40 GHz

DP323640A

Passbands:
32 – 36 – 40 GHz

Products Qualified to MIL 2000 Production:

Rapidly Prototyped, Precision CNC Manufactured, Electroplated (Nickel and Silver or Gold).

Precision Etched Highest Quality Components and Materials Assembled and Finished by Hand.
