Broadband triplexer processing a DC to 18 GHz input signal into 3 contiguous passbands with crossovers at 2 and 8 GHz, and an additional high pass at 1.15 GHz. It provides low insertion loss of less than 1.5 dB, return loss exceeding 10 dB, and very high stopband rejection of typically more than 60 dB. Connectors are SMA female at input and SMA male at output.
2.4mm triplexer processing a DC to 50 GHz input signal into 3 contiguous passbands with crossovers at 18 and 33 GHz. It provides low passband insertion loss of less than 1.5 dB, good return loss of more than 10 dB, and high rejection of more than 50 dB.
Non-contiguous triplexer that separates a DC to 67 GHz input into three passbands: DC to 21.5 GHz, 29 to 39 GHz, and 47 to 67 GHz. It offers low passband insertion loss of less than 1.3 dB, good return loss of more than 10 dB, and at least 30 dB rejection. The connectors are SMA, 2.92mm, and 1.85mm.
2.92mm triplexer processing a DC to 40 GHz input signal into 3 contiguous passbands with crossovers at 26.5 and 34 GHz, and an additional high pass at 18 GHz. It provides low passband insertion loss of less than 1.5 dB, good return loss of more than 9.54 dB (VSWR 2:1), and high rejection to -55 dB.

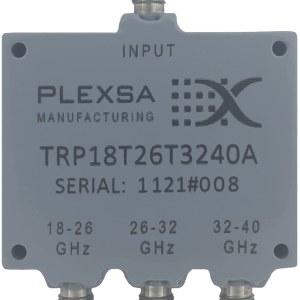

2.92mm triplexer processing a DC to 40 GHz input signal into 3 contiguous passbands with crossovers at 26 and 32 GHz, and an additional high pass at 18 GHz. It provides low passband insertion loss of less than 1.5 dB, high return loss of more than 12 dB, and high rejection to -55 dB.

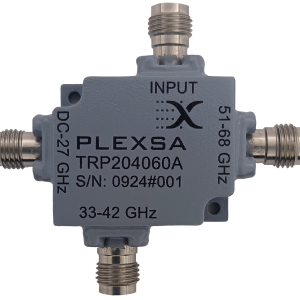

Non-contiguous triplexer that separates a DC to 68 GHz input into three passbands: DC to 27 GHz, 33 to 42 GHz, and 51 to 68 GHz. It offers low passband insertion loss of less than 1.5 dB, good return loss of more than 12 dB, and at least 40 dB rejection. The connectors are SMA, 2.4mm, and 1.85mm.

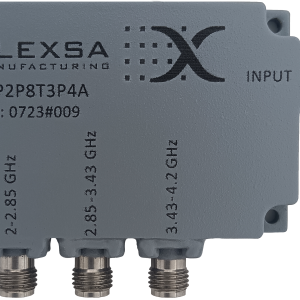

SMA triplexer processing a DC to 5 GHz input signal into 3 contiguous passbands with crossovers at 2.85 and 3.43 GHz, and an additional low pass at 2 GHz and high pass at 4.2 GHz. It provides low passband insertion loss of less than 1.5 dB, good return loss of more than 10 dB, and at least 30 dB rejection.

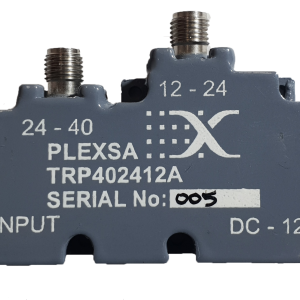

Broadband 2.92 mm triplexer which processes a DC to 40 GHz input into 3 contiguous passbands with crossovers at 12 and 24 GHz. It provides very low passband insertion loss of less than 1.0 dB, good return loss of more than 12 dB, and high stopband rejection of more than 50 dB.

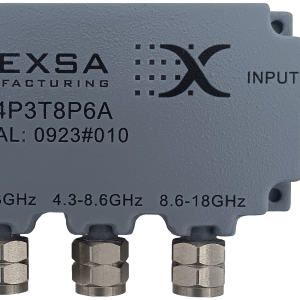

Broadband triplexer processing a DC to 18 GHz input signal into 3 contiguous passbands with crossovers at 4.3 and 8.6 GHz, and an additional low pass at 2 GHz, It provides very low passband insertion loss of less than 1.0 dB, high return loss of more than 12 dB, and high rejection of more than 50 dB. Connectors are 2.4mm (F) at input and (M) at outputs.
