Quadruplexer

Broadband RF quadruplexers (quadplexer / fourplexer, 4- channel multiplexer), implemented with suspended substrate stripline technology.

Our quadruplexers can be used to split a broadband input into four adjacent frequency bands OR combine four bands into a single output. They have low insertion loss and VSWR, and high selectivity. One of our high performance quadruplexers (QUAD481218C) achieves 60 dB isolation within 2% of each crossover frequency, demonstrating ultra-sharp roll-off. Another (QUAD61014TCA) processes a DC – 18 GHz input in ultra-compact packaging, with SMA connectors.

Choosing a high-performance multiplexer instead of separate filters allows you to have better performance across all the bands, in space-efficient easily integrated packaging.

Contact us for custom designs, from DC to 70 GHz.

QUAD1B Integrated Coupler

Passbands:
2 – 6 – 10 – 14 – 18 GHz

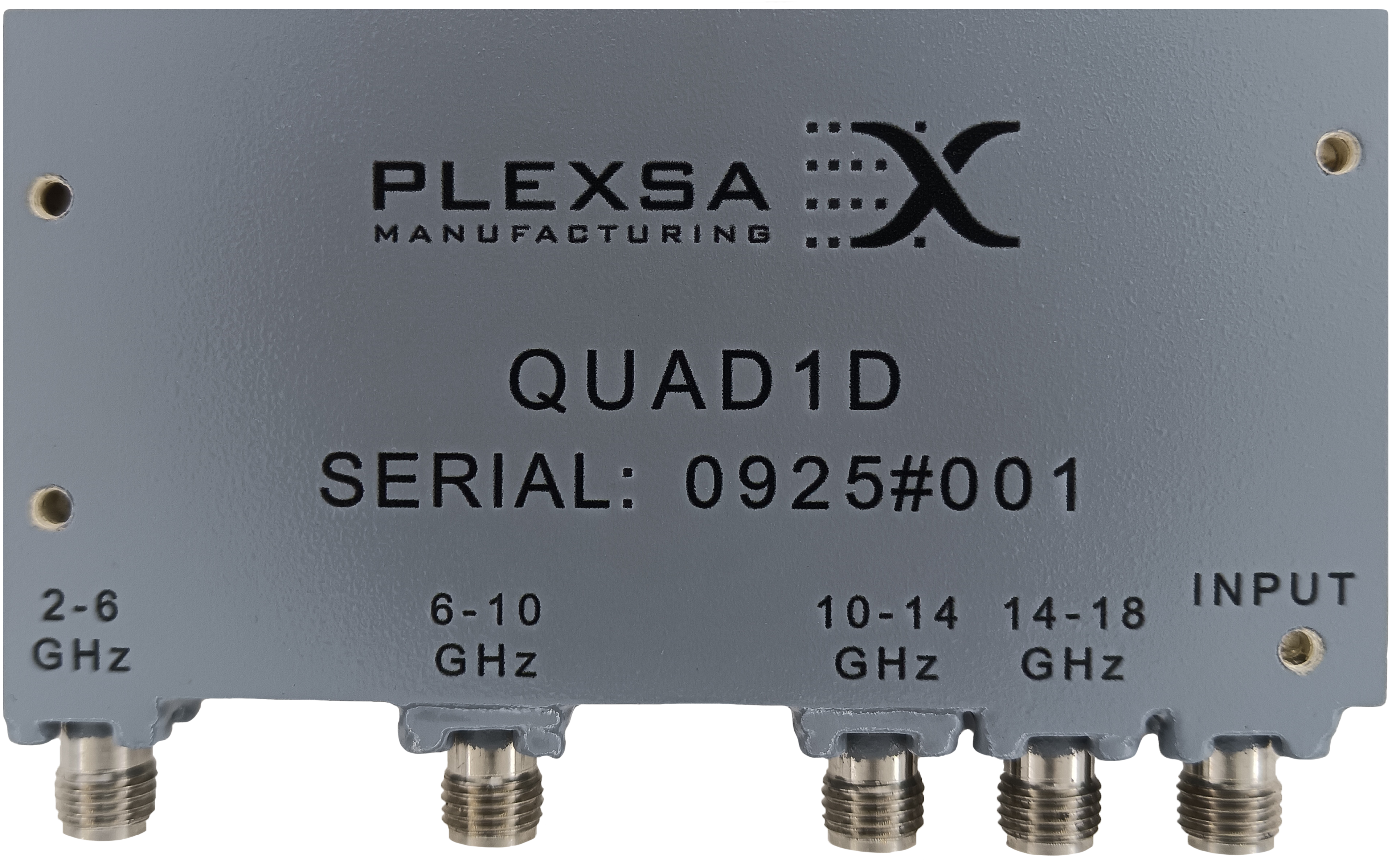

QUAD1D

Passbands:
2 - 6 - 10 - 14 - 18 GHz

QUAD1P8A

Passbands:
2 – 6 – 10 – 14 – 18 GHz

broadband rf quadruplexer product contiguous channels 1 to 2 to 8 to 18 to 40 GHz plexsa

QUAD281840A

Passbands:
1 – 2 – 8 – 18 – 40 GHz

Broadband RF Quadruplexer Product Contiguous Channels 2 to 4 to 8 to 12 to 18 GHz plexsa

QUAD481218A

Passbands:
DC – 4 – 8 – 12 – 18 GHz

Broadband RF Quadruplexer Product Contiguous Channels 2 to 4 to 8 to 12 to 18 GHz input DC to 25 GHz plexsa

QUAD481218B

Passbands:
2 – 4 – 8 – 12 – 18 GHz

QUAD481218C

Passbands:
2 – 4 – 8 – 12 – 18 GHz

broadband rf quadruplexer product contiguous channels 2 to 4 to 8 to 12 to 18 GHz passband insertion loss less than 1 dB plexsa

QUAD481218D

Passbands:
2 – 4 – 8 – 12 – 18 GHz

QUAD481253E2

Passbands:
2 – 4 – 8 – 12 – 18 GHz

Broadband RF Quadruplexer Product four contiguous output channels DC to 50 GHz plexsa

QUAD50362412A

Passbands:
DC – 12 – 24 – 36 – 50 GHz

QUAD61014300A

Passbands:
2 – 6 – 10 – 14 – 18 GHz

QUAD61014TCA

Passbands:
2 – 6 – 10 – 14 – 18 GHz

Products Qualified to MIL 2000 Production:

Rapidly Prototyped, Precision CNC Manufactured, Electroplated (Nickel and Silver or Gold).

Precision Etched Highest Quality Components and Materials Assembled and Finished by Hand.
