HP6T26P5A

Product Image:

Product Plot:

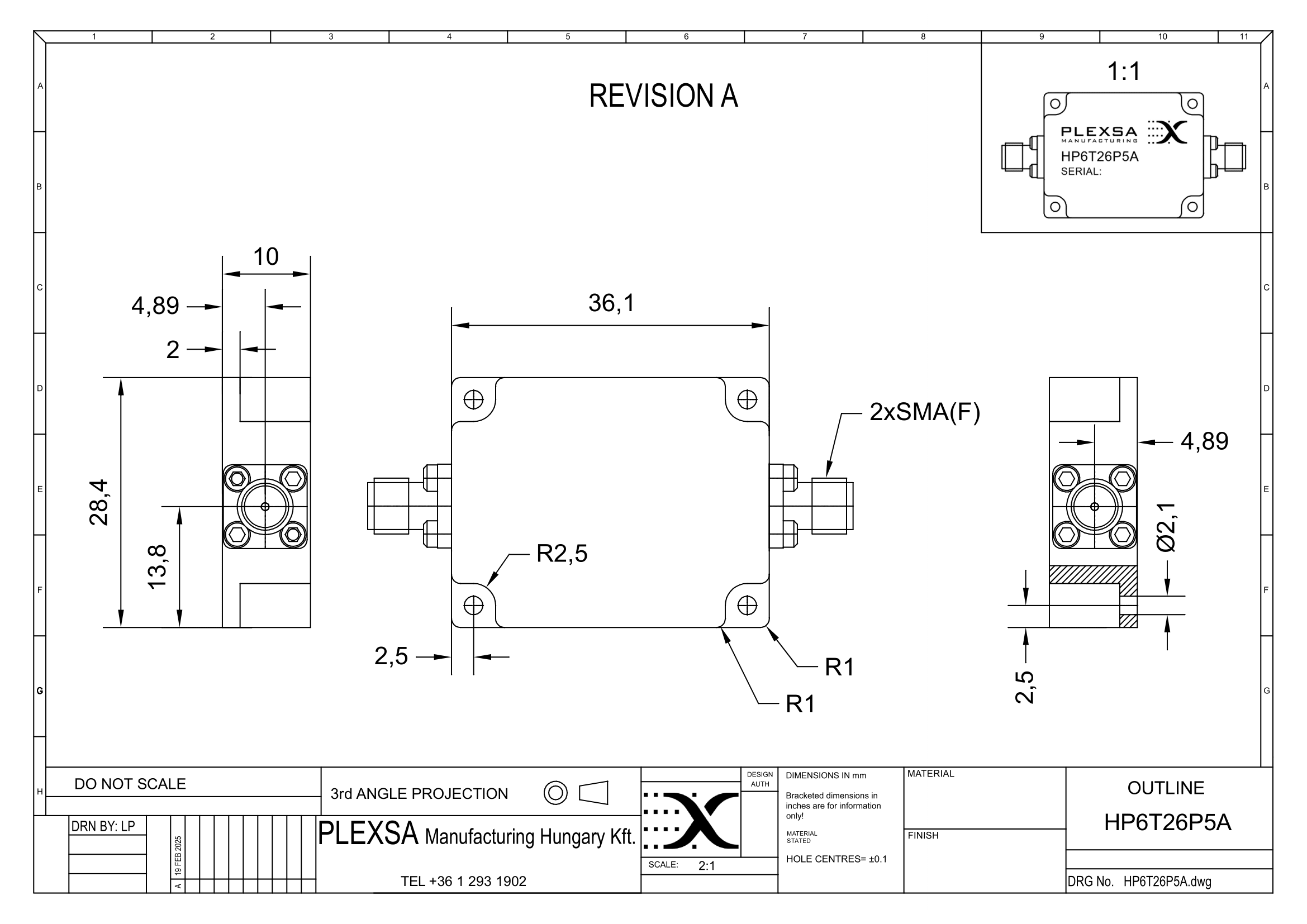

Download PlotView Outline Drawing

Product Description:

An ultra-broadband SMA high pass filter designed for input signals from DC to 26.5 GHz, with a passband from 6 to 26.5 GHz. It features very low passband insertion loss of less than 1.0 dB from 6.1 to 26.5 GHz, with mid-band insertion loss as low as 0.2 dB, and very high return loss of greater than 17 dB. The filter provides high out-of-band rejection, exceeding 60 dB from DC to 5.4 GHz.

Input

DC – 26.5 GHz

Passband

6 – 26.5 GHz

Insertion Loss

6.1 – 26.5 GHz ≤ 1.0 dB

Return Loss

> 17 dB

Stopband Rejection

@ 5.8 GHz ≥ 5.0 dB

DC – 5.4 GHz > 60 dB

Typical Size of Painted Housing

36.0 x 28.6 x 10.1 mm
