DP45T70A

DP45T70A

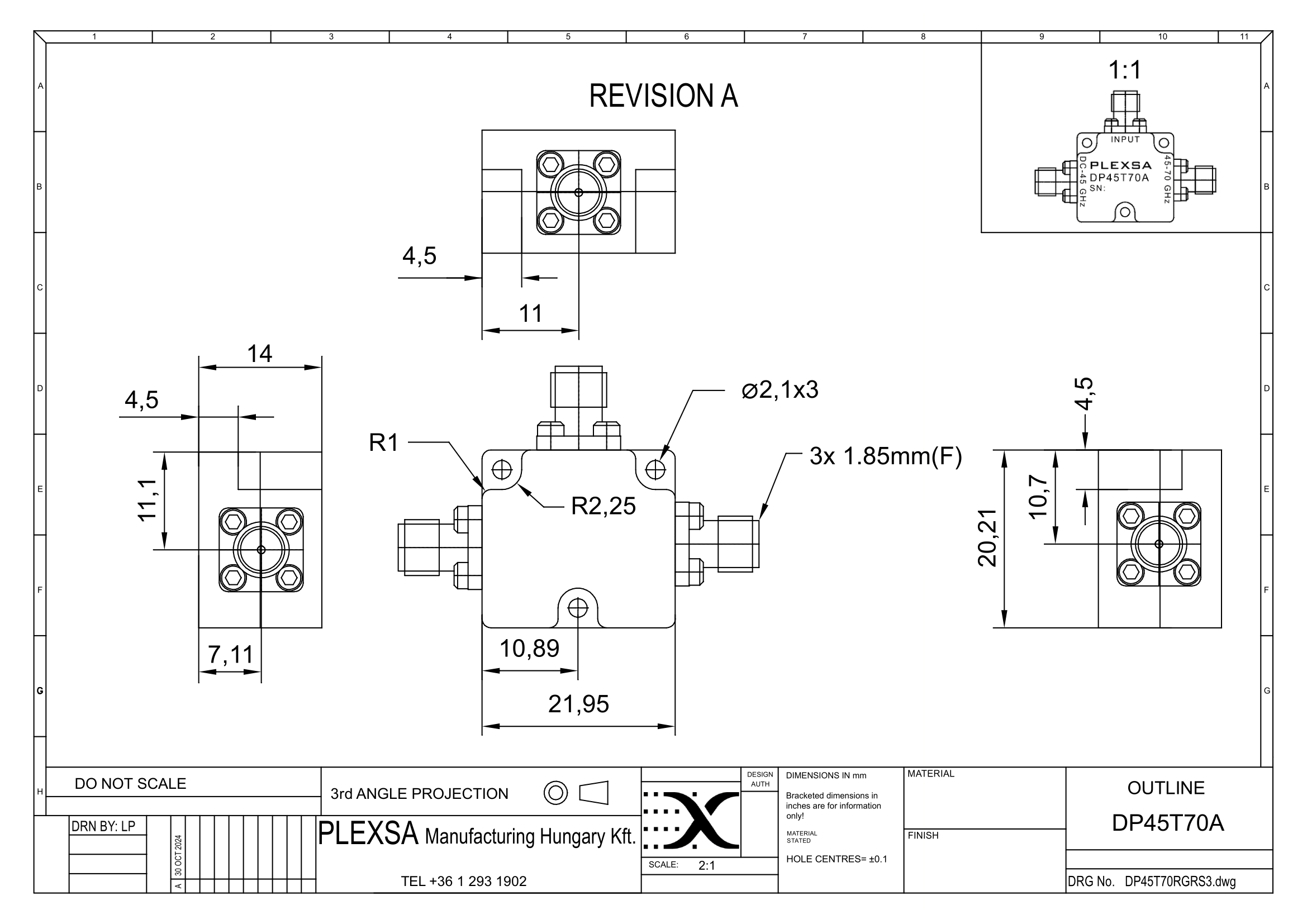

Product Image:

Product Plot:

Download Plot

Product Description:

Input

DC – 70 GHz

Passbands

DC – 45 – 70 GHz

Insertion Loss

CH1 DC – 43.9 GHz < 1.0 dB
CH2 47.3 – 67 GHz < 1.0 dB

Return Loss

DC – 67 GHz > 10 dB
67- 70 GHz > 9.5 dB

Isolation

CH1 50 – 70 GHz > 50 dB
CH2 DC – 42 GHz > 60 dB
