TRP183350A

TRP183350A

Product Image:

Product Plot:

Download Plot

Product Description:

A 2.4mm triplexer processing a DC – 50 GHz input signal into 3 contiguous passbands with crossovers at 18 and 33 GHz, low losses, and high rejection to -55 dB typically.

Input

DC – 50 GHz

Passbands

DC – 18 – 33 – 50 GHz

Insertion Loss

< 1.5 dB

Return Loss

> 10 dB

Isolation

CH1 19.5 – 50 GHz > 55 dB

CH2 DC – 16.5, 36.8 – 50 GHz > 50 dB

CH3 DC – 29 GHz > 55 dB

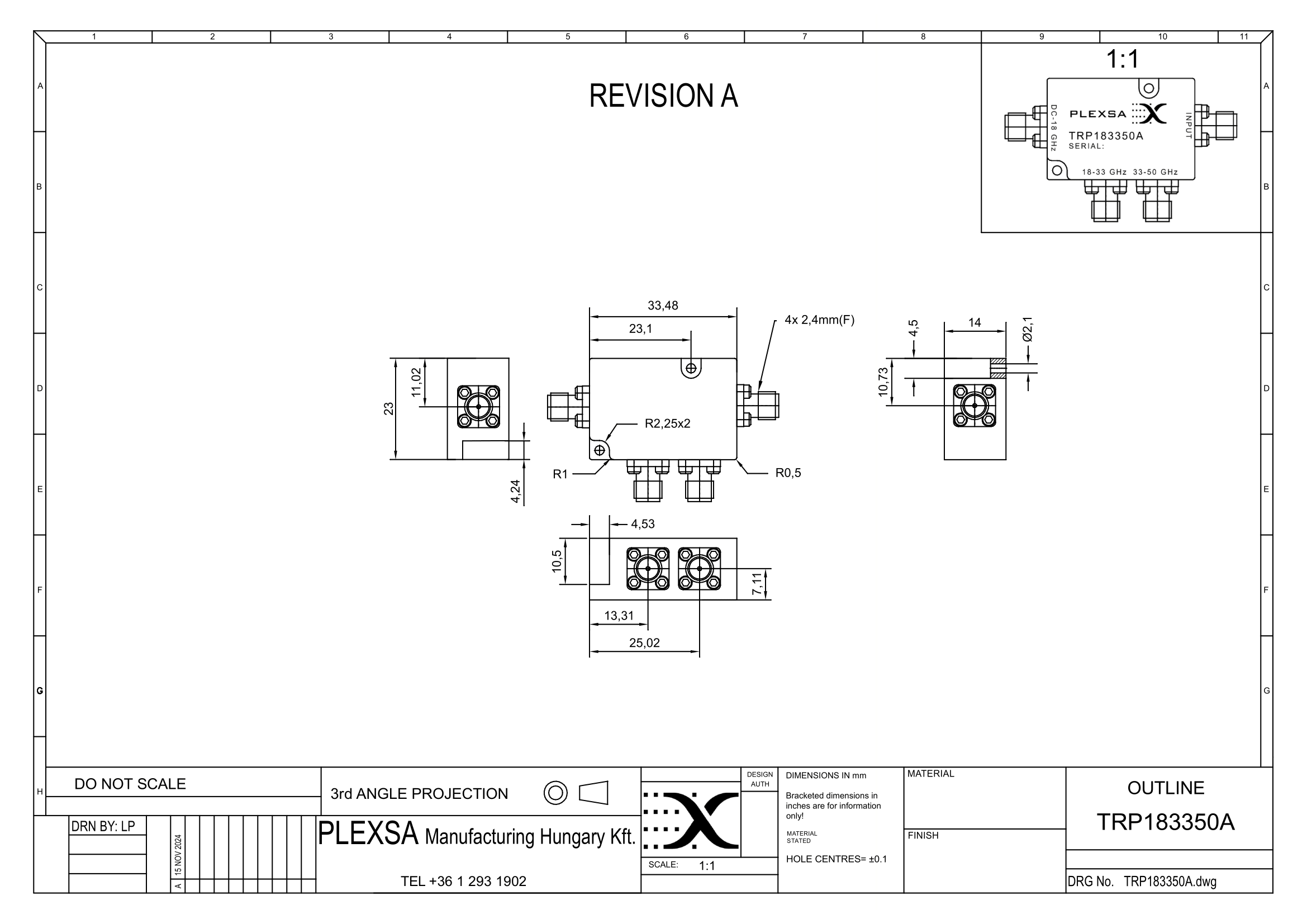

Typical Size of Painted Housing

33.7 x 23.5 x 14.3 mm
