DP0P5T1A

DP0P5T1A

Product Image:

Product Plot:

Download Plot

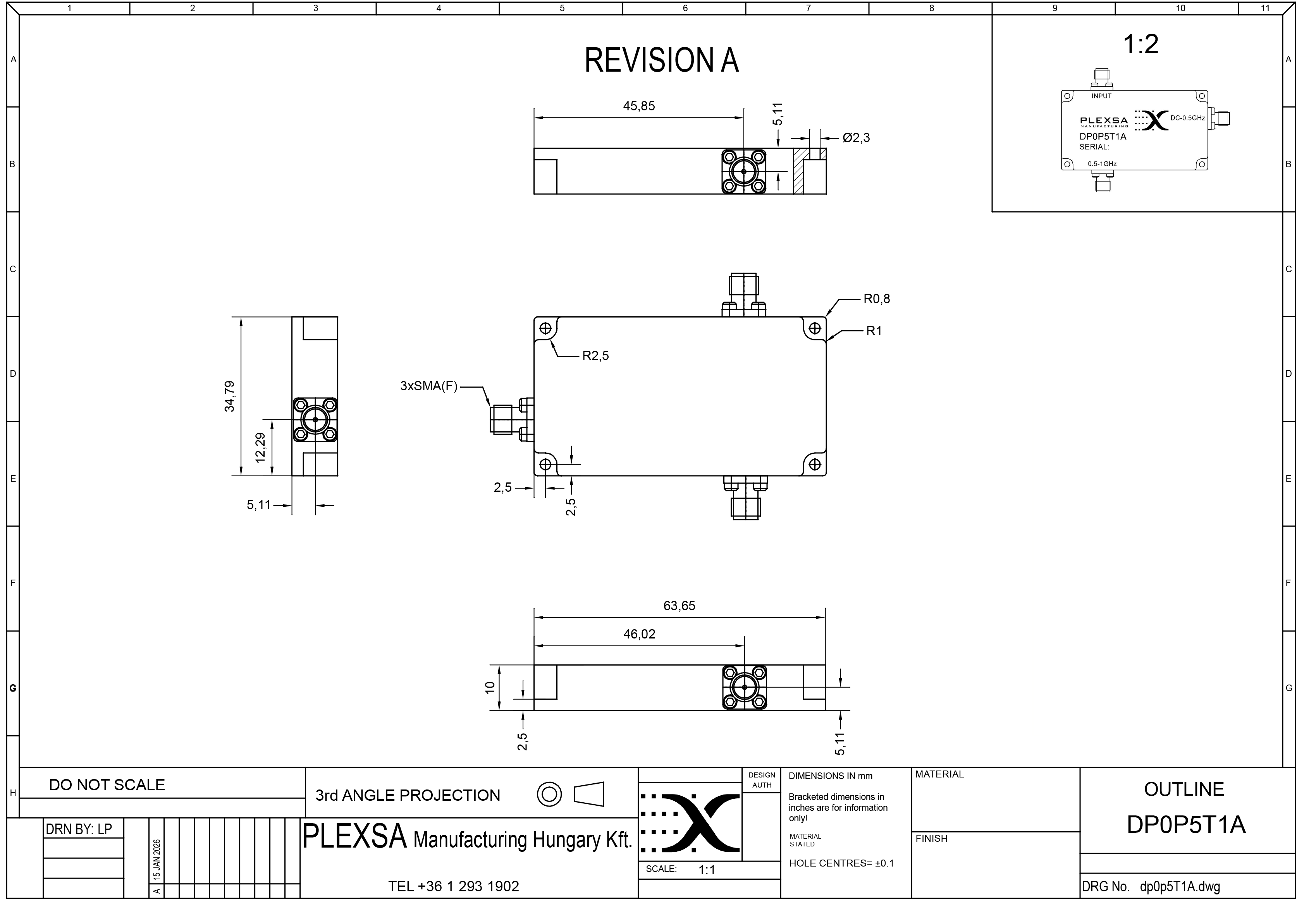

View Outline Drawing

Product Description:

A broadband SMA diplexer processing a DC – 1 GHz input signal into 2 contiguous passbands with a crossover at 500 MHz, low losses, and high rejection to -55 dB.

The input and CH2 connectors are male and the CH1 connector is female.

Input

DC – 1 GHz

Passbands

DC – 0.5 – 1 GHz

Insertion Loss

typically < 1.0 dB

Return Loss

> 12 dB

Isolation

CH1 0.6 – 1 GHz > 55 dB

CH2 DC – 0.4 GHz > 60 dB

Typical Size of Painted Housing

64.1 x 34.9 x 10.2 mm
