TRP0P7T2T18A

TRP0P7T2T18A

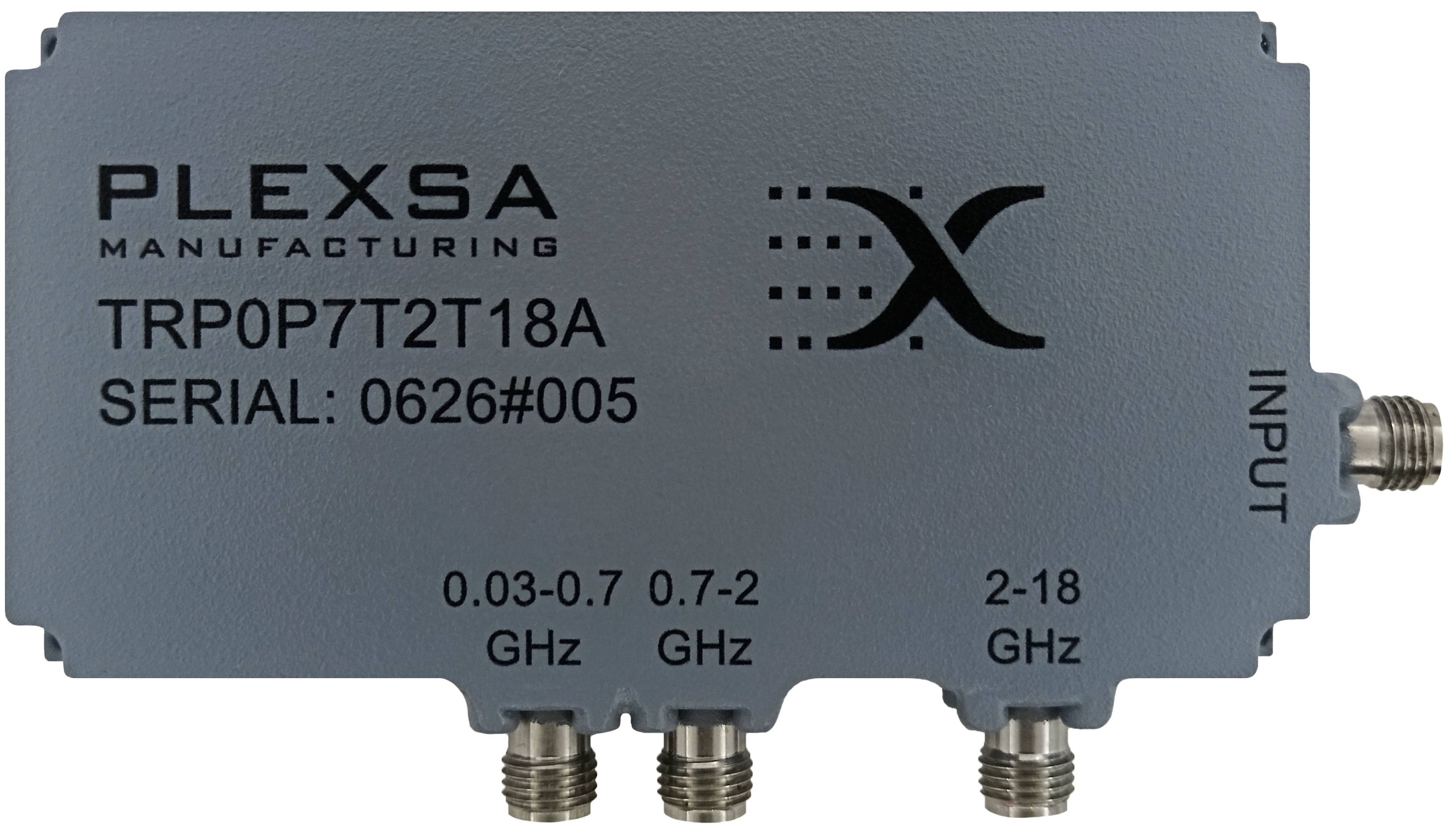

Product Image:

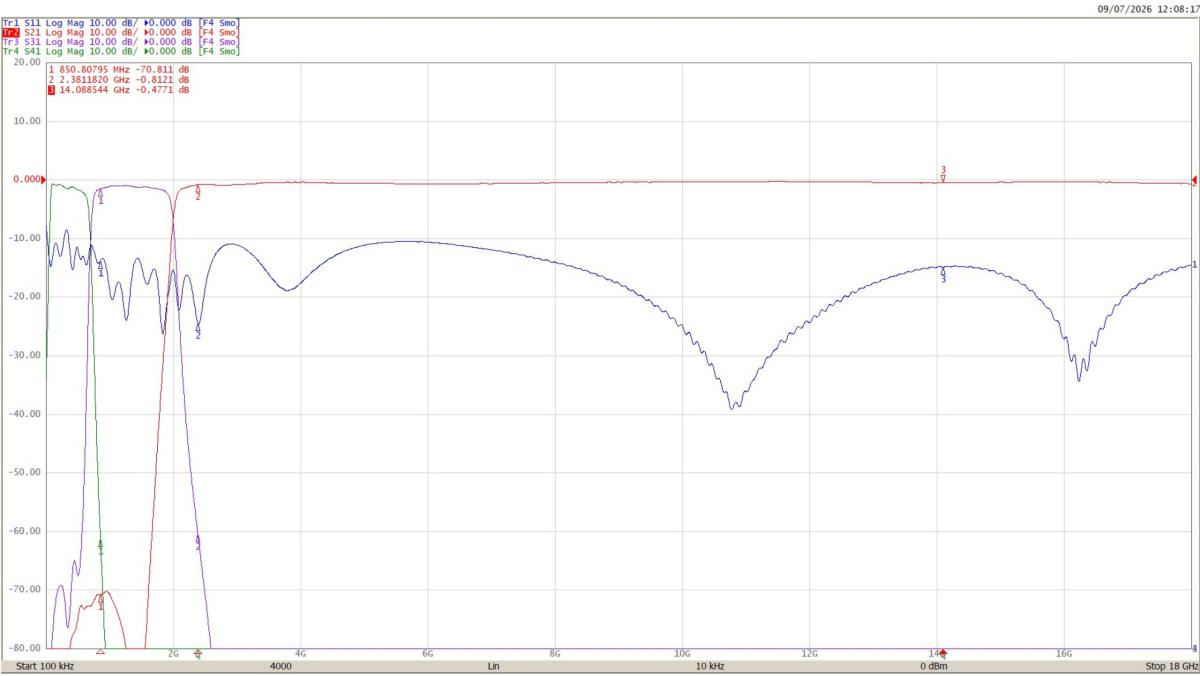

Product Plot:

Download PlotView Outline Drawing

Product Description:

Plexsa’s second hybrid triplexer that combines lumped element components with suspended stripline technology to process a DC – 18 GHz input signal into 3 contiguous passbands, with crossovers at 0.7 and 2 GHz. This ultra-broadband SMA component provides an additional high pass at 30 MHz and high rejection to 53 dB or more in a compact housing.

Input

DC – 18 GHz

Passbands

0.03 – 0.7 – 2 – 18 GHz

Insertion Loss

< 2.5 dB

Return Loss

0.03 – 0.7 GHz > 7.5 dB

0.7 – 18 GHz > 10 dB

Stopband

CH1 DC – 0.0195 GHz > 53 dB

        0.86 – 18 GHz > 60 dB

CH2 DC – 0.54; 2.39 – 18 GHz > 60 dB

CH3 DC – 1.67 GHz > 60 dB

Typical Size of Painted Housing

82.5 x 42.5 x 10.2 mm
