QUINT3P5A

Product Image:

Product Plot:

Download Plot

Product Description:

An SMA quintuplexer (pentaplexer/fiveplexer) processing a DC – 24 GHz input signal into 5 contiguous passbands with crossovers at 2, 3.5, 6, and 10 GHz, an additional high pass at 0.5 GHz and low pass at 18 GHz, typically -60 dB selectivity, and low losses.

Input

DC – 24 GHz

Passbands

0.5 – 2 – 3.5 – 6 – 10 – 18 GHz

Insertion Loss

CH1 0.55 – 1.85 GHz < 1.35 dB
CH2 2.1 – 3.32 GHz < 1.35 dB
CH3 3.67 – 5.7 GHz < 1.35 dB
CH4 6.3 – 9.5 GHz < 1.0 dB
CH5 10.5 – 18 GHz < 1.0 dB

Return Loss

> 10 dB

Isolation

CH1 DC – 0.35 GHz > 55 dB
        2.3 – 24 GHz > 60 dB
CH2 DC – 1.75 > 60 dB
        3.95 – 24 GHz > 55 dB
CH3 DC – 3.15 > 60 dB
        6.6 – 24 GHz > 55 dB
CH4 DC – 5.35 > 60 dB
        10.8 – 24 GHz > 55 dB
CH5 DC – 8.95 > 60 dB
        19.55 – 24 GHz > 55 dB

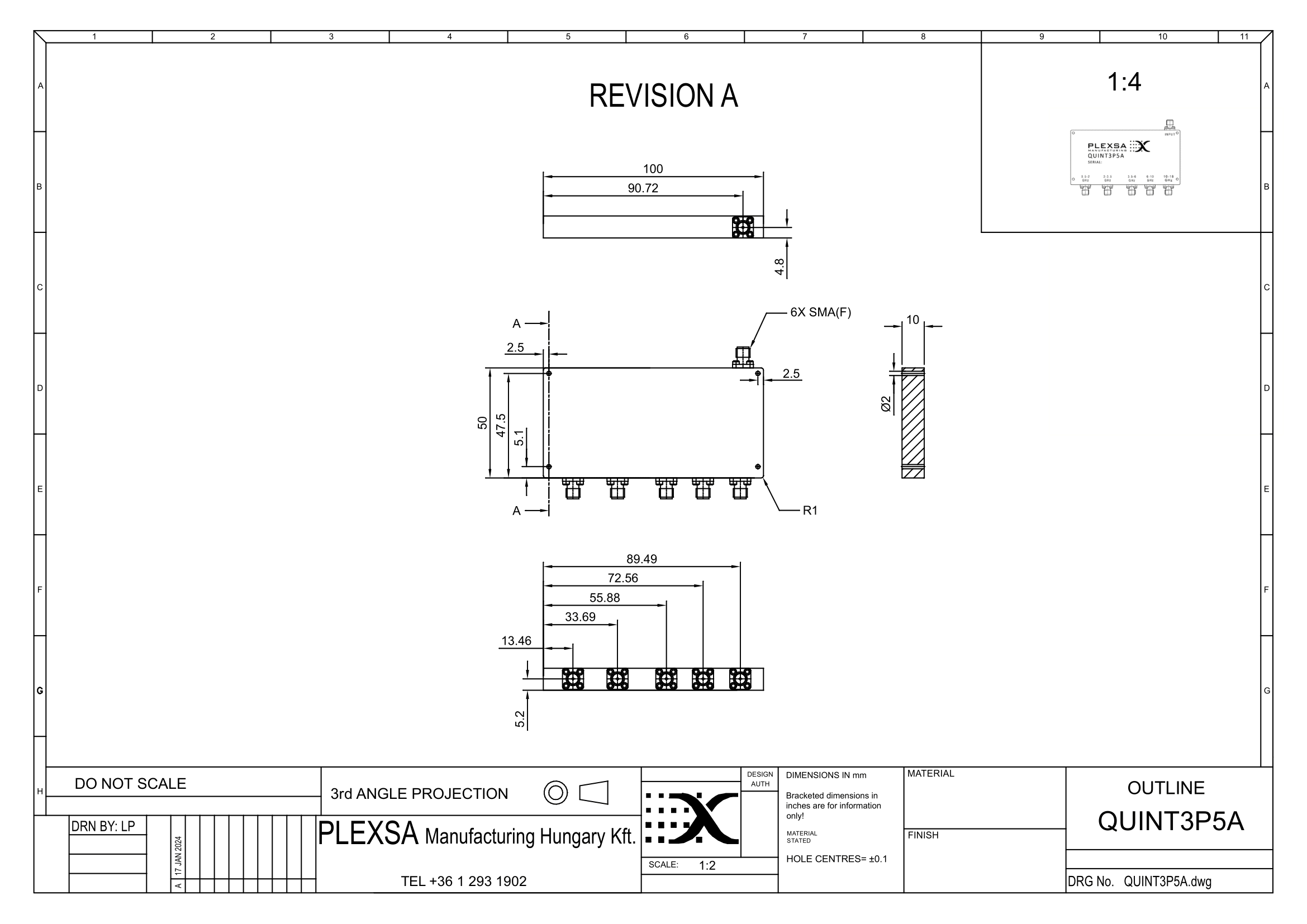

Typical Size of Painted Housing

100.3 x 50.2 x 10.2 mm
