QUAD1B Integrated Coupler

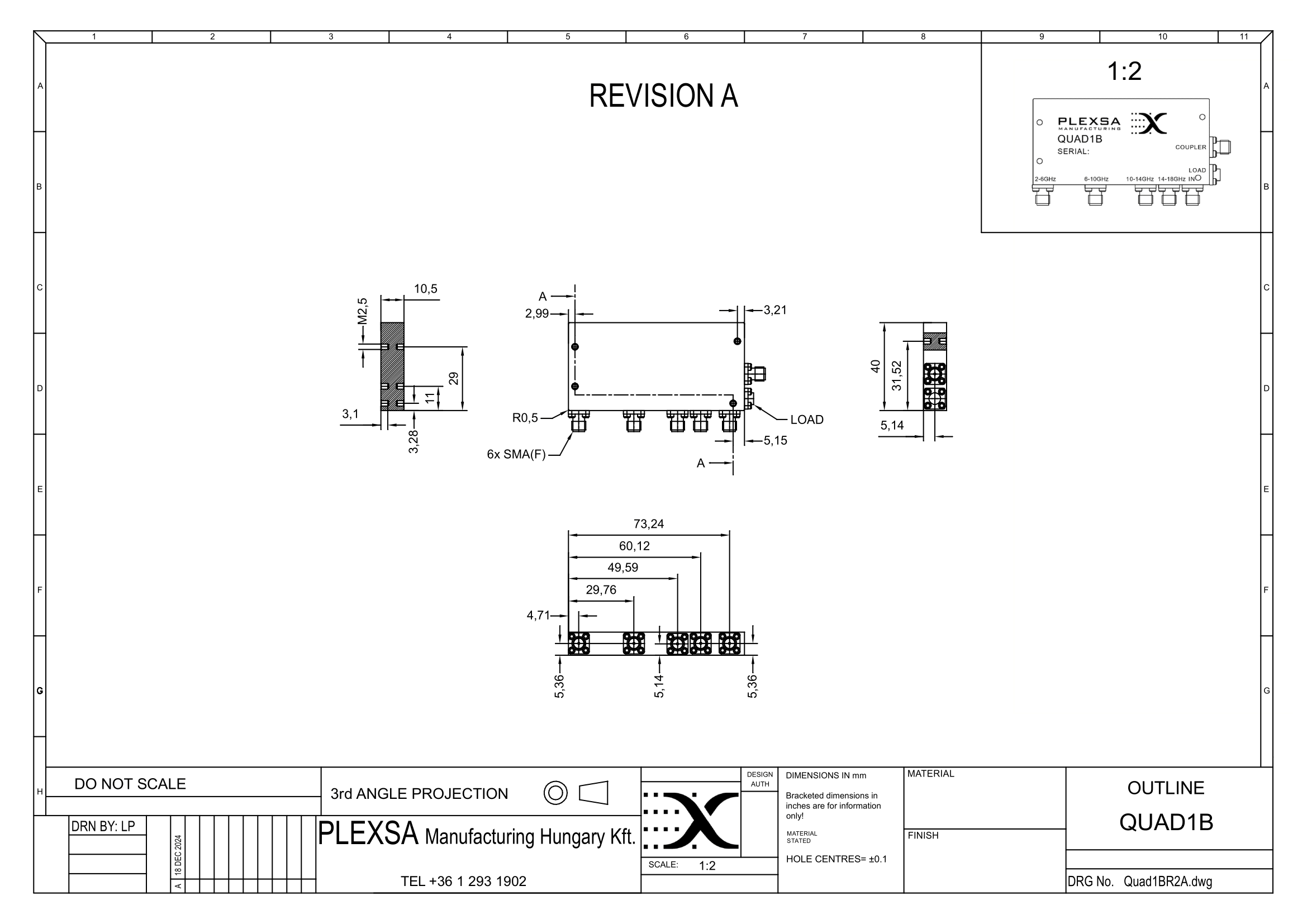

Product Image:

Product Plot:

Download Plot

Product Description:

An SMA quadruplexer (quadplexer/fourplexer) processing a DC – 25 GHz input signal into 4 contiguous passbands with crossovers at 6, 10, and 14 GHz, an additional high pass at 2 GHz and low pass at 18 GHz, and an integrated coupler to -20 dB with high selectivity (-60 dB) and low losses.

Input

DC – 25 GHz

Passbands

2 – 6  – 10 – 14 – 18  GHz

Insertion Loss

< 1.5 dB

Return Loss

> 10 dB

Isolation

CH1 DC – 1.55; 6.9 – 25 GHz     > 60 dB

CH2 DC – 5.1; 11.5 – 25 GHz     > 60 dB

CH3 DC – 8.5; 16.1 – 25 GHz     > 60 dB

CH4 DC – 11.9; 19.8 – 25 GHz     > 60 dB

Integrated coupler -20 dB

Size

80.1 x 40.1 x 10.7 mm
