HP1840C

Product Image:

Product Plot:

Download Plot

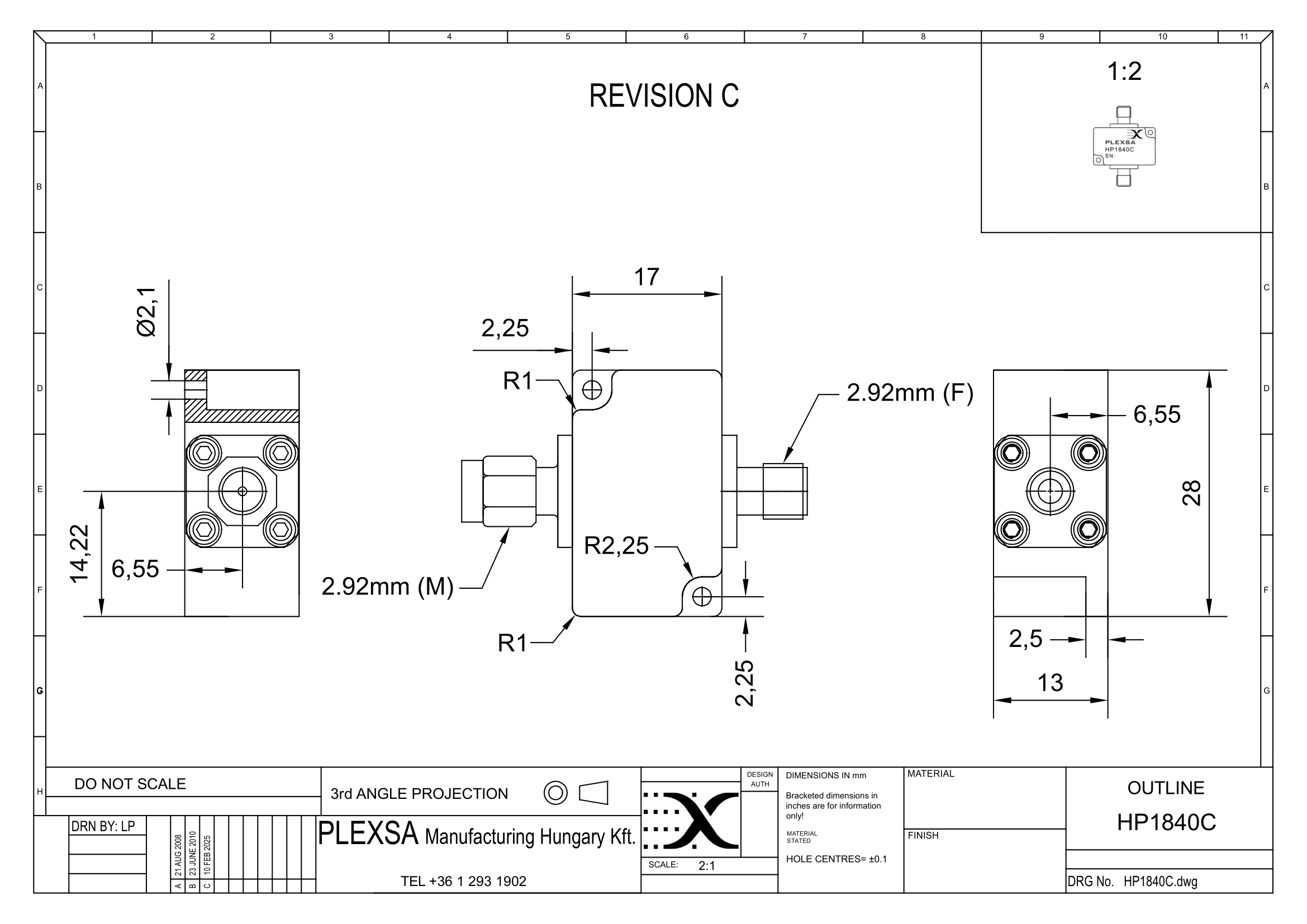

View Outline Drawing

Product Description:

An ultra-broadband high pass filter designed for input signals from DC to 40 GHz, with a passband from 18 to 40 GHz. It features low passband insertion loss of less than 1.5 dB from 18.4 to 40 GHz and less than 2.0 dB from 18 to 18.4 GHz, and return loss greater than 10 dB (with real-world performance consistently exceeding 12 dB). The filter provides high out-of-band rejection, exceeding 55 dB from DC to 16.5 GHz, and it comes with one 2.92 mm male and one 2.92 mm female connector.

Input

DC – 40 GHz

Passband

18 – 40 GHz

Insertion Loss

18 – 18.4 GHz < 2.0 dB

18.4 – 40 GHz < 1.5 dB

Return Loss

> 10 dB

Stopband Rejection

DC – 16.5 GHz > 55 dB

Typical Size of Painted Housing

28.0 x 17.1 x 13.1 mm
