BS8A

Product Image:

Product Plot:

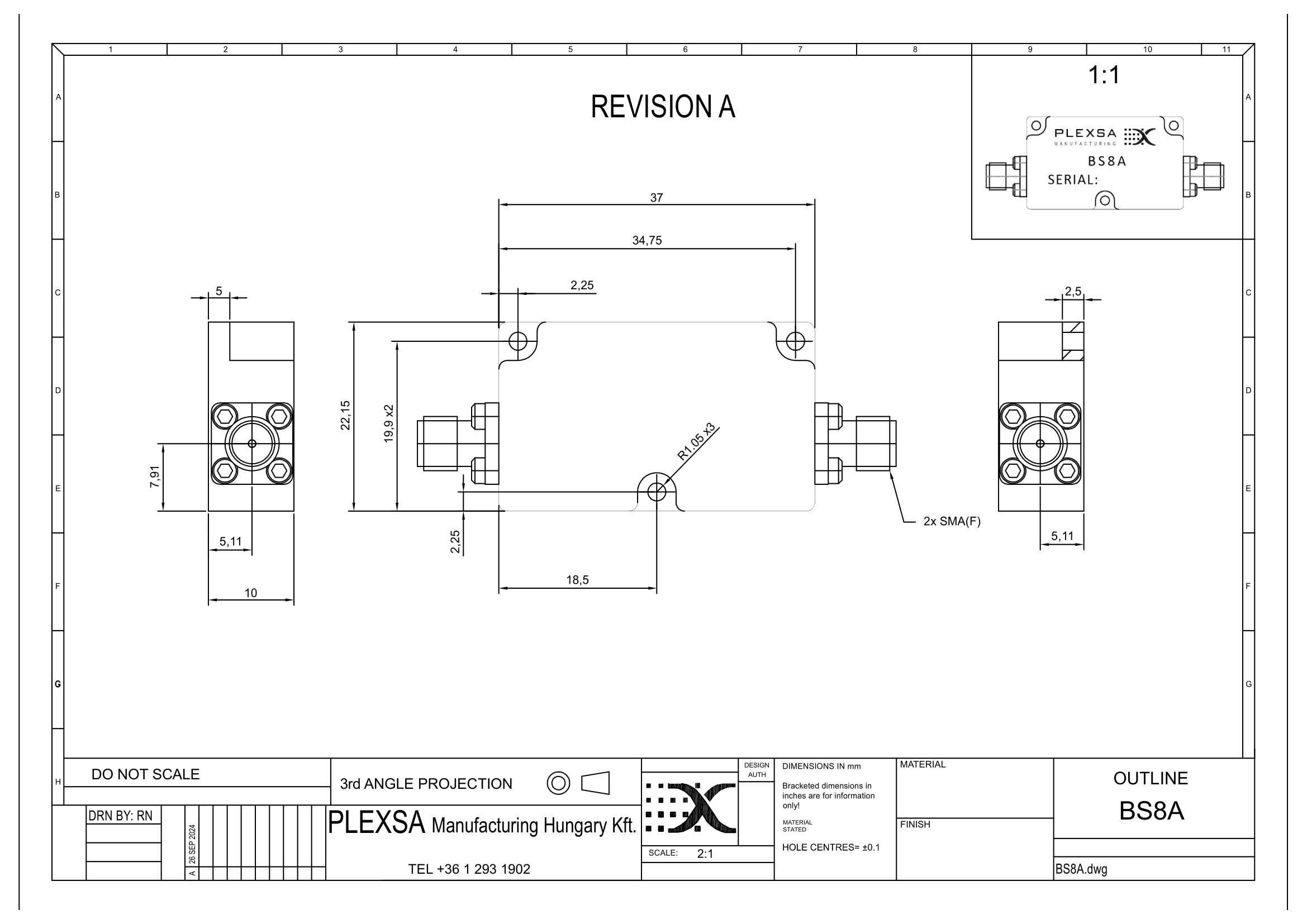

Download PlotView Outline Drawing

Product Description:

A broadband SMA bandstop filter designed for input signals from DC to 18 GHz, with a stopband from 7.9 to 8.4 GHz offering at least 40 dB rejection. It features low passband insertion loss of less than 1.5 dB below 7.2 GHz and above 9 GHz, with mid-band insertion loss as low as 0.5 dB.

Input

DC – 18 GHz

Stopband

7.9 – 8.4 GHz

Insertion Loss

DC – 7.2; 9 – 18 GHz < 1.5 dB

@‌7.4; 8.9 GHz ≤ 3.0 dB

Return Loss

DC – 7.4; 9 – 18 GHz

> 9 dB

Rejection

7.9 – 8.4 GHz

> 40 dB

Typical Size of Painted Housing

37.0 x 22.3 x 10.1 mm
