An SMA quadruplexer (quadplexer/fourplexer) processing a DC – 18 GHz input signal into 4 contiguous passbands with crossovers at 6, 10, and 14 GHz, an additional high pass at 2 GHz, stringent crossover frequency accuracy (~0.5% for each), -60 dB selectivity, and low losses.
| Input | DC – 18 GHz |
|---|---|
| Passbands | 2 – 6 – 10 – 14 – 18 GHz |
| Insertion Loss | typically < 1.0 dB |
| Return Loss | > 10 dB |
| Isolation | CH1 DC – 1.5; 6.9 – 19 GHz > 60 dB CH2 DC – 5.1; 11.5 – 18 GHz > 60 dB CH3 DC – 8.5; 16.1 – 18 GHz > 60 dB CH4 DC – 11.9 GHz > 60 dB |

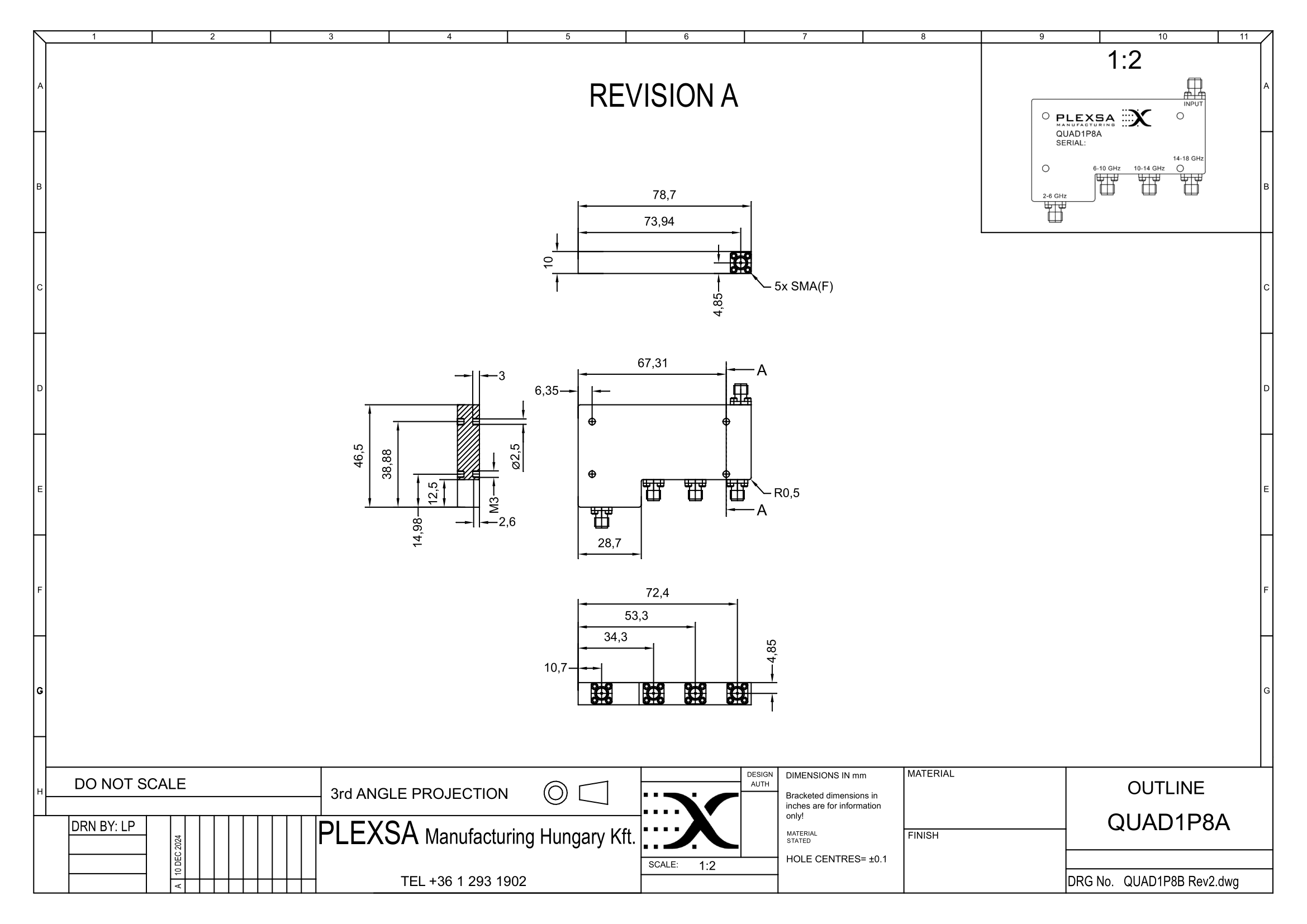

| Size | 78.8 x 46.5 x 10.2 mm |
