QUAD1D

QUAD1D

Product Image:

Product Plot:

Download Plot

Product Description:

An SMA quadruplexer (quadplexer/fourplexer) processing a DC – 25 GHz input signal into 4 contiguous passbands with crossovers at 6, 10, and 14 GHz, an additional high pass at 2 GHz and low pass at 18 GHz, and steep roll-off attenuating the signal to -60 dB within 500 MHz of each crossover, and with low losses.

Input

DC – 25 GHz

Passbands

2 – 6 – 10 – 14 – 18 GHz

Insertion loss

typically < 1.5 dB

Return loss

> 10 dB

Stopband

CH1 DC – 1.5; 6.5 – 25 GHz     > 60 dB
CH2 DC – 5.5; 10.5 – 25 GHz     > 60 dB
CH3 DC – 9.5; 14.5 – 25 GHz     > 60 dB
CH4 DC – 13.5; 18.5 – 25 GHz     > 60dB

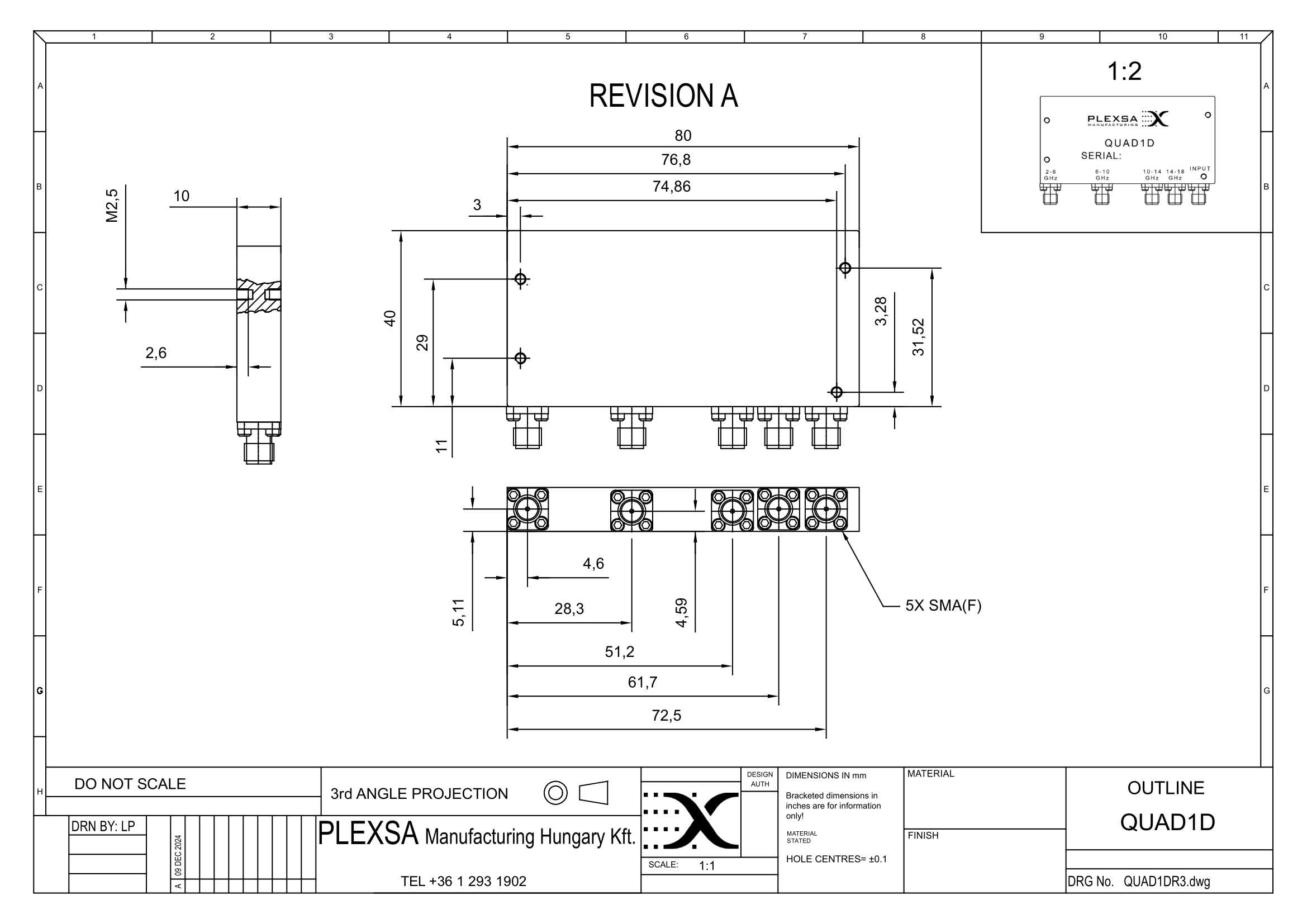

Size

80.4 x 40.1 x 10.3 mm
