LP10A

Product Image:

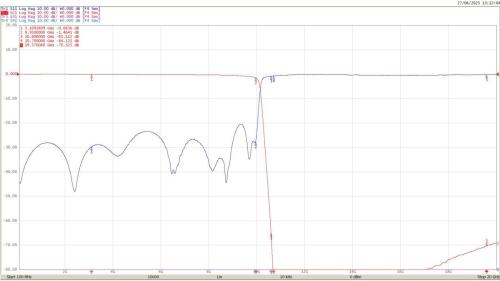

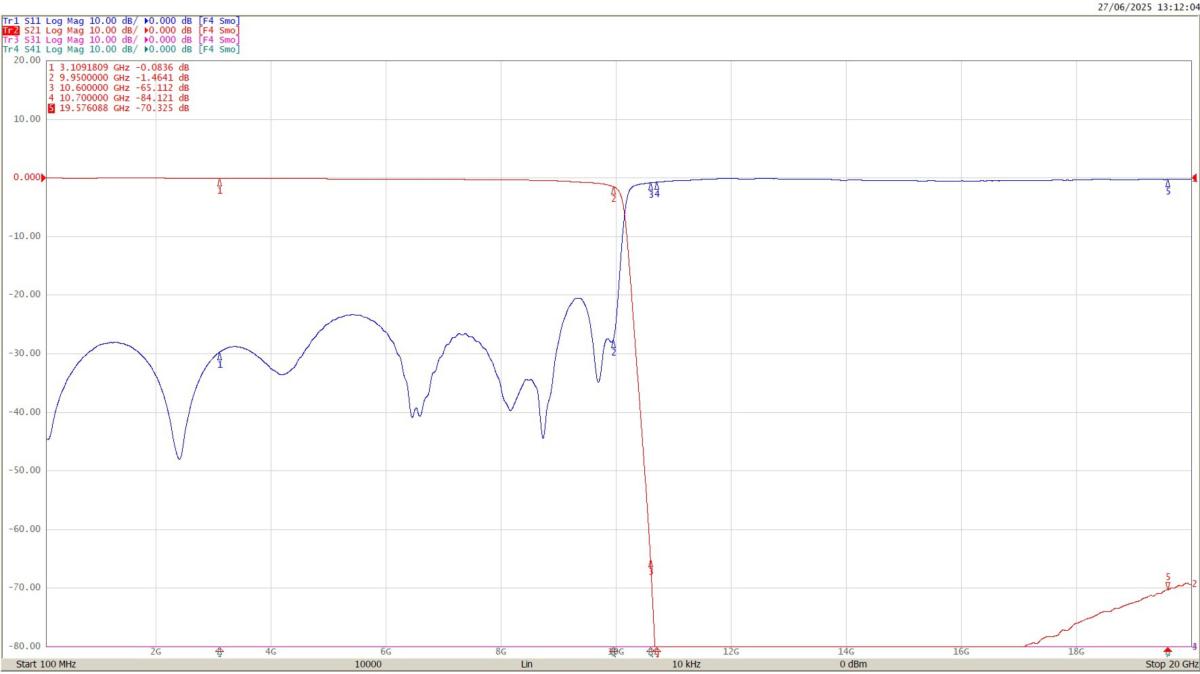

Product Plot:

Download Plot

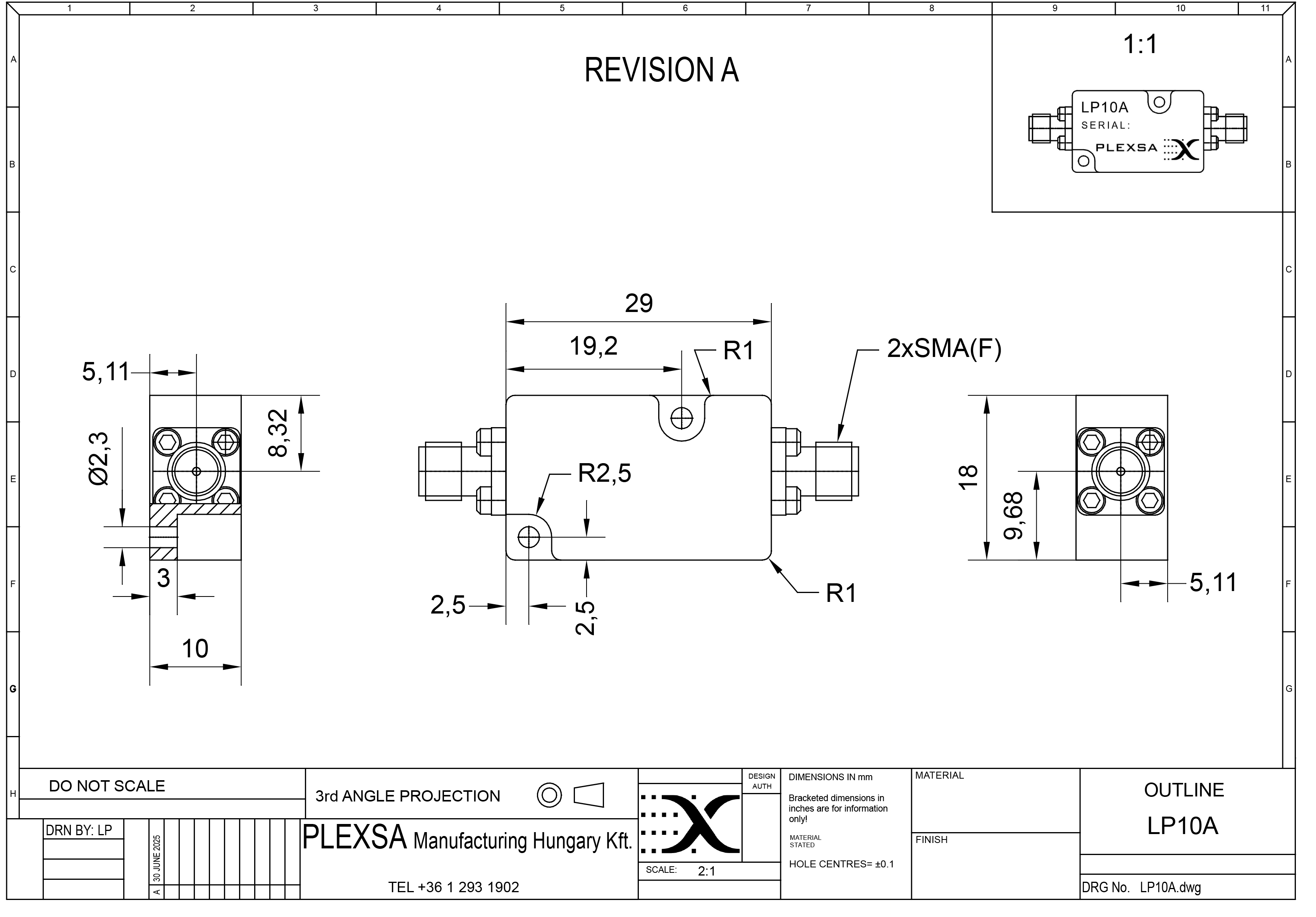

View Outline Drawing

Product Description:

A broadband SMA low pass filter designed for input signals from DC to 20 GHz with a passband from DC to 9.95 GHz. It features low passband insertion loss of 1.5 dB or less, with mid-band insertion loss as low as 0.1 dB, and very high return loss of greater than 17 dB. The filter provides excellent stopband rejection, exceeding 70 dB from 11 to 19 GHz.

Input

DC – 20 GHz

Passband

1 – 9.95 GHz

Insertion Loss

≤ 1.5 dB

Return Loss

> 17 dB

Stopband Rejection

11 – 19 GHz     > 70 dB

Typical Size of Painted Housing

29 x 18.3 x 10.3 mm
