DP2T18B

Product Image:

Product Plot:

Download Plot

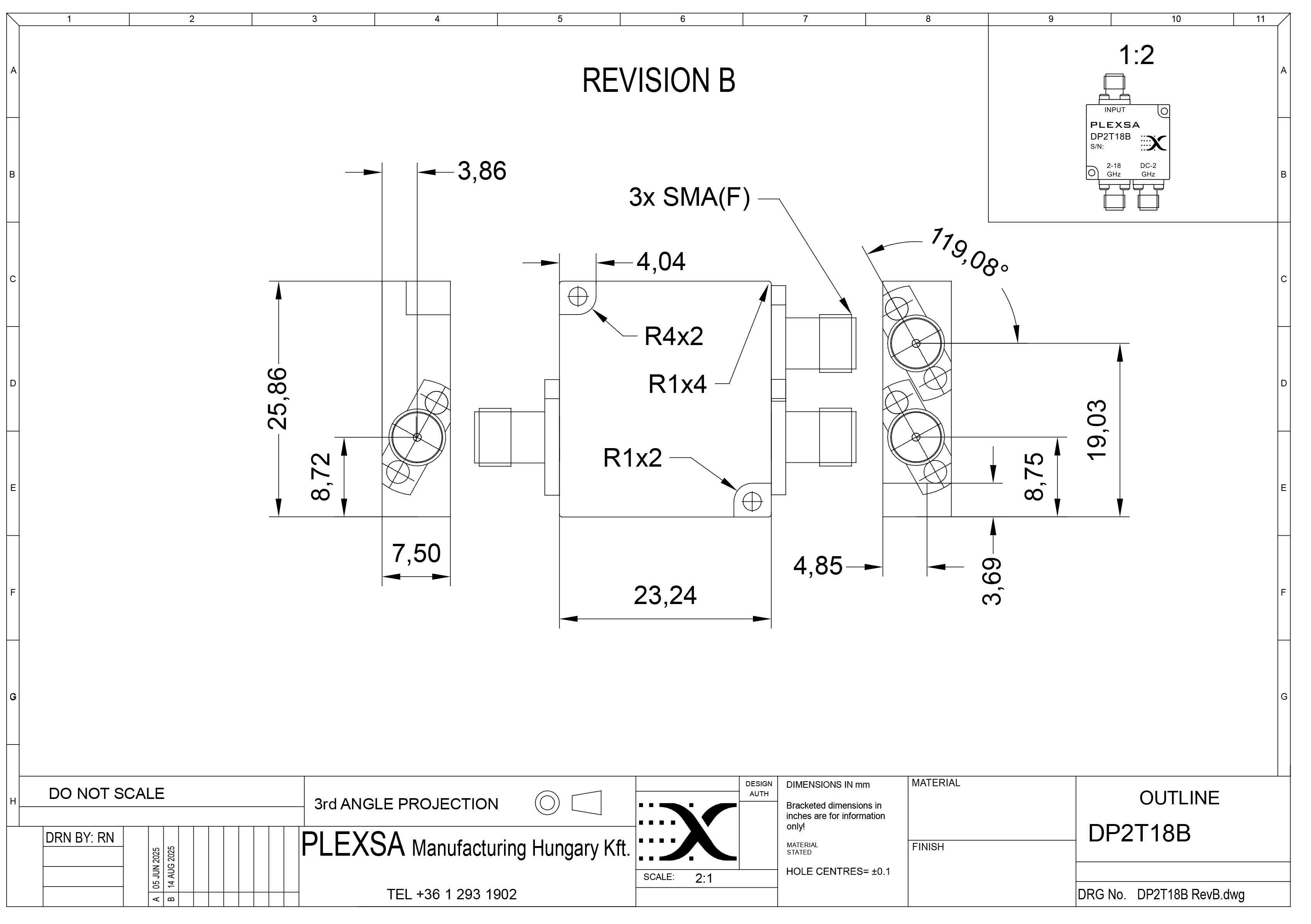

View Outline Drawing

Product Description:

Ultra-broadband SMA diplexer processing a DC to 18 GHz input signal into 2 contiguous passbands with a crossover at 2 GHz, with more than 60 dB isolation between bands, in an exceptionally compact and thin housing.

Input

DC – 18 GHz

Passbands

DC – 2 – 18 GHz

Insertion Loss

CH1 DC – 1.95 GHz < 2.0 dB

CH2 2.15 – 18 GHz < 1.5 dB

Stopband

CH1 2.65 – 18 GHz > 60 dB

CH2 DC – 1.65 GHz > 60 dB

Typical Size of Painted Housing

25.8 x 23.2 x 7.6 mm
