Product Image:

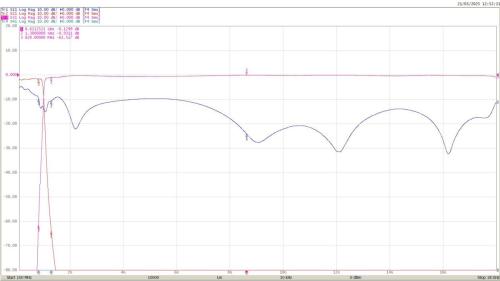

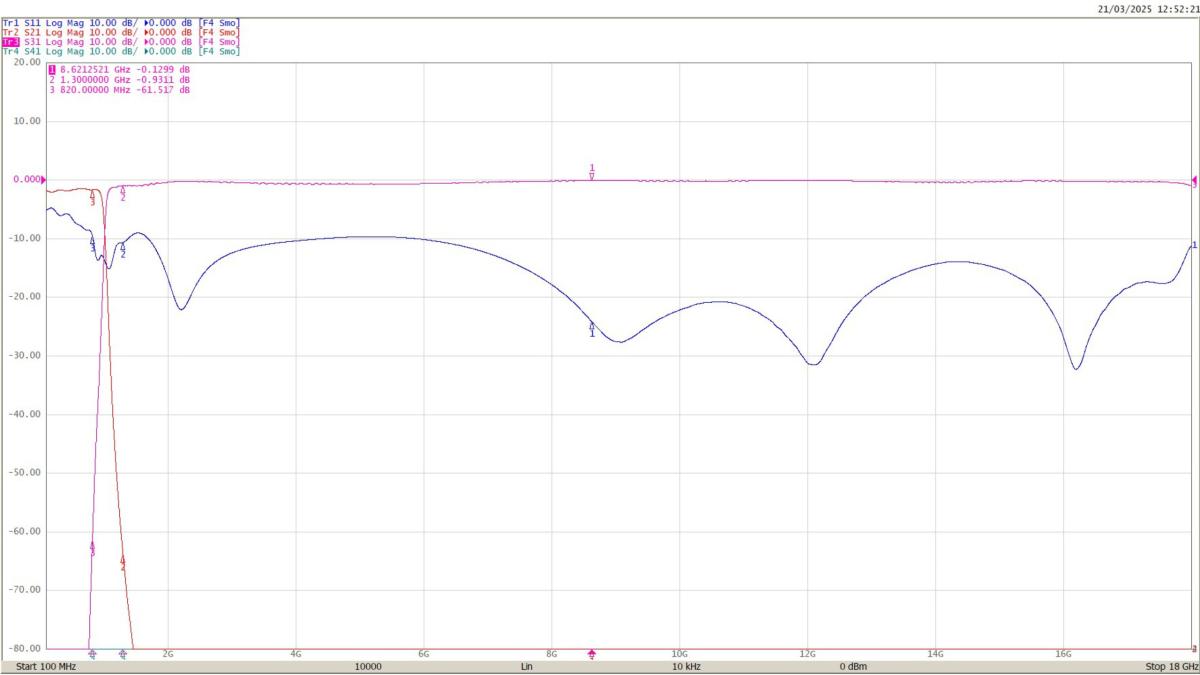

Product Plot:
Product Description:
Passbands: DC – 1 – 18 GHz
| Passbands | DC – 1 – 18 GHz |
|---|---|
| Insertion Loss | < 1.5 dB |
| Return Loss | > 9 dB |
| Isolation | CH1 1.25 – 18 GHz > 60 dB CH2 DC – 0.77 GHz > 60 dB |
| Size | 69.2 x 30.8 x 10.1 mm |
