DP10T18A

Product Image:

Product Plot:

Download Plot

Product Description:

Input

DC – 24 GHz

Passbands

6 – 10 – 18 GHz

Insertion Loss

< 1.0 dB

Return Loss

> 12 dB

Isolation

CH1 DC – 5.45; 10.8 – 24 GHz > 55 dB

CH2 DC – 9.1; 19.9 – 24 GHz > 55 dB

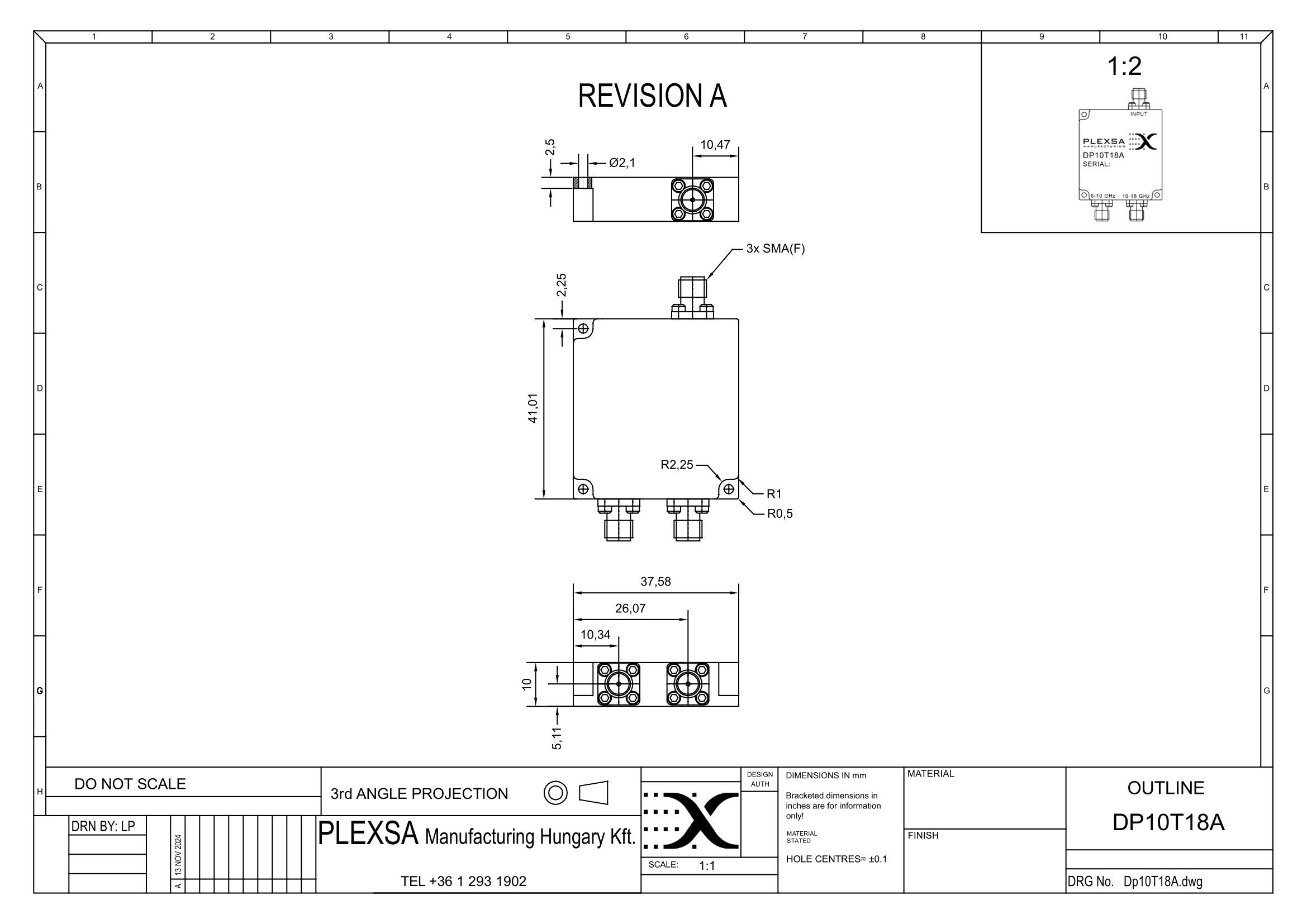

Size

37.7 x 41.0 x 10.1 mm
