DP05T2T18A

Product Image:

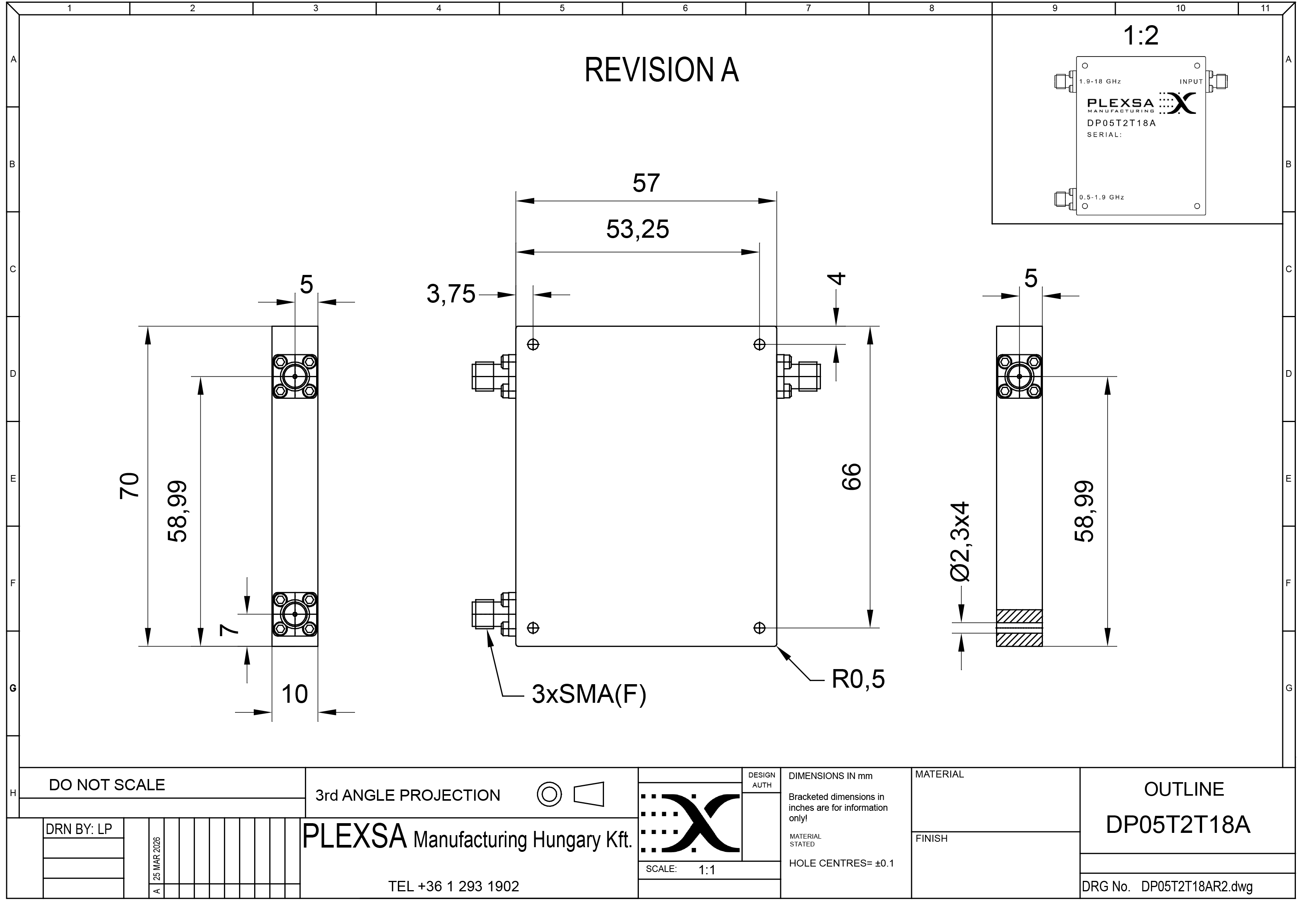

Product Plot:

Download Plot

Product Description:

Passbands: 0.5 – 2 – 18 GHz

Input

DC – 18 GHz

Passbands

0.5 – 2 – 18 GHz

Insertion Loss

< 1.0 dB

Return Loss

> 9.54 dB

Isolation

CH1 DC – 0.4; 2.3 – 18 GHz     > 60 dB

CH2 DC – 1.7 GHz     > 60 dB

Size

57.0 x 70.1 x 10.0 mm
